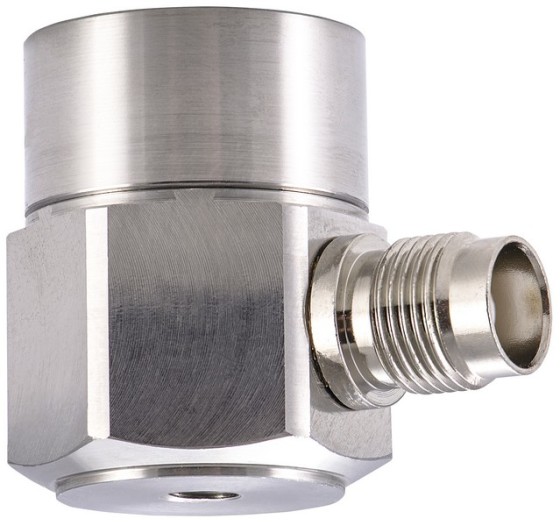

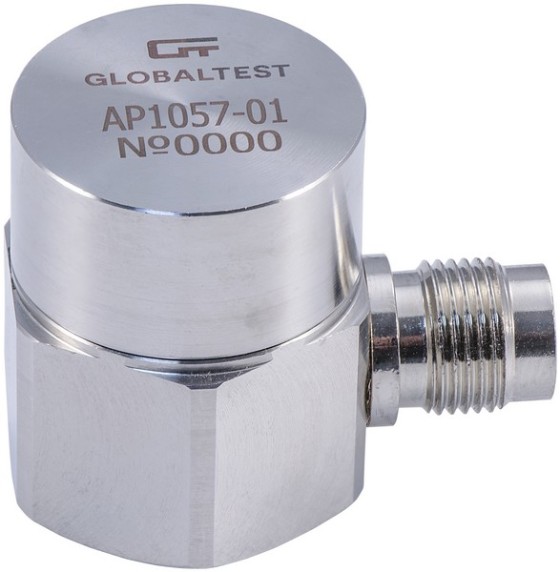

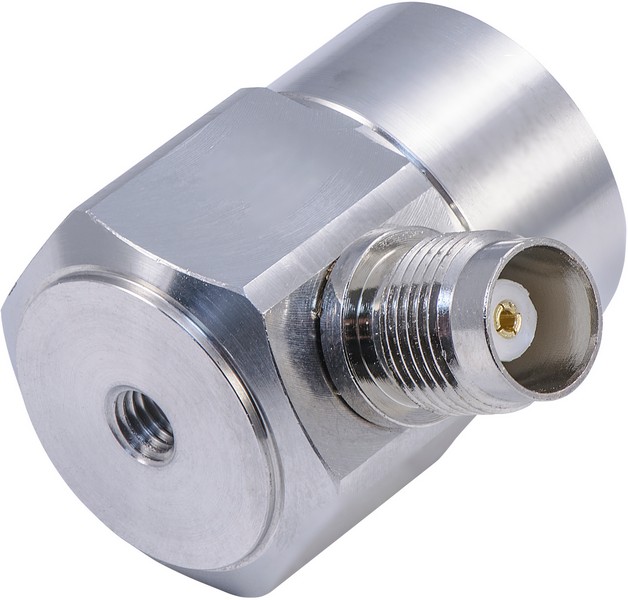

Vibration transducer AP1057-01

Purpose:
  • Measuring vibration and shock acceleration in portable diagnostic systems and laboratory tests.
Features:
  • Shear-based pattern of piezoelement operation.
  • High axial sensitivity and self-resonant frequency.
  • Robust design and waterproof casing.
  • Stable characteristics and reliable operation.
  • Can be used for modal analysis.
Check price with the manufacturer
Description
Documents
  • Parameter
    Value
  • Conversion factor
    8 pC/m/s²
  • Relative coefficient of transverse conversion (less than)
    0,05
  • Operating frequency range
    0,5 ... 8000 Hz
  • Maximum amplitude value of the measured parameter
    1500 m·s²
  • Max. shock limit (peak value)
    4000 g
  • Strain sensitivity (less than)
    0,005 gm/µm
  • Electric capacity under normal conditions
    1000 ... 1500 pF
  • Operating temperature range
    -60 ... 150 °C
  • Connector type
    TNC-BJ
  • Output direction
    horizontal
Electric Circuit of AP1057-01

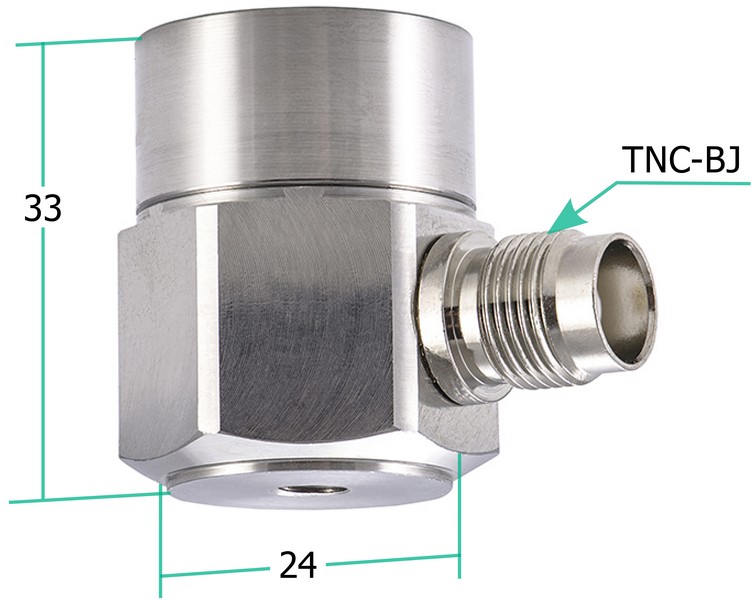

Габаритный чертеж
