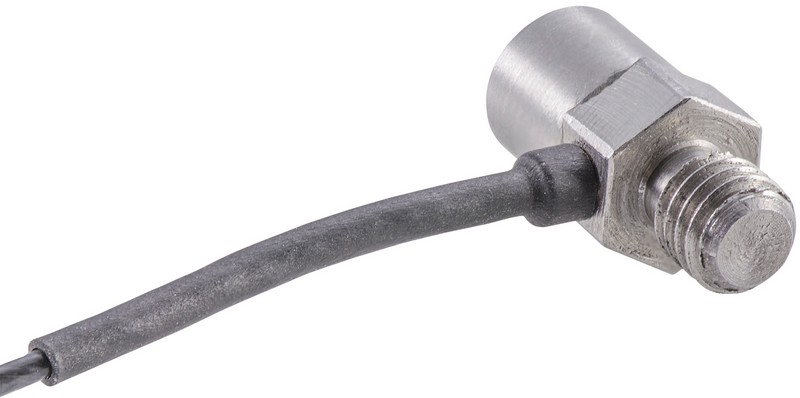

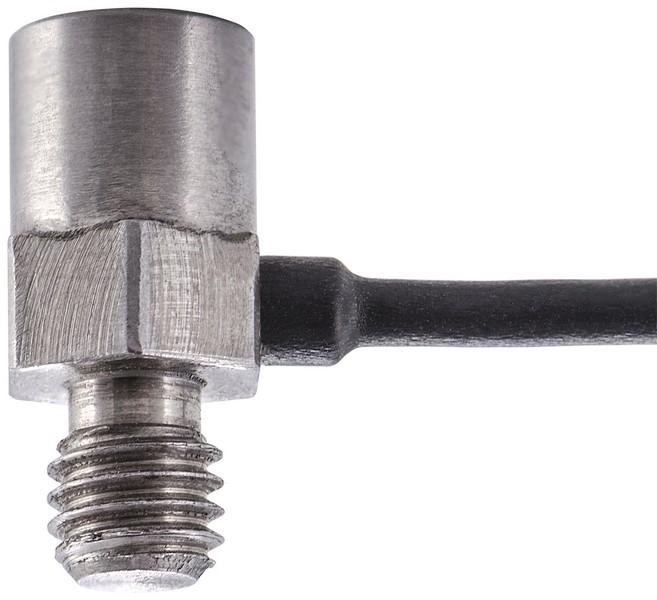

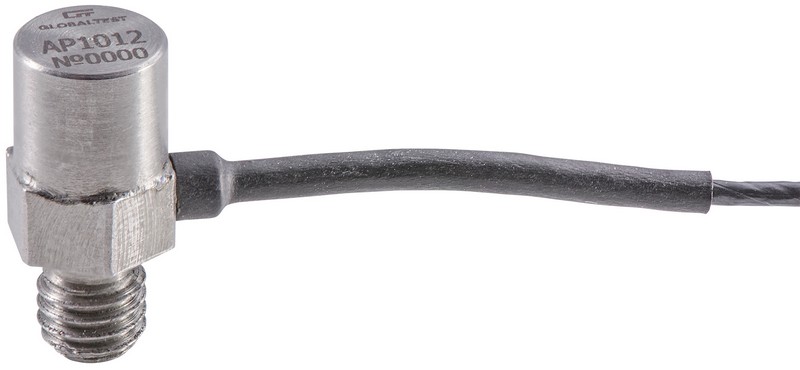

Vibration transducer AP1012

Purpose:
  • Measuring high-intensity vibration and shock accelerations of objects in diagnostic systems and laboratory tests.
Features:
  • Wide amplitude and frequency range.
  • Stable characteristics and reliable operation.
  • Non-detachable antivibration cable.
  • Low sensitivity to temperature variation.
Check price with the manufacturer
Description
Documents
  • Parameter
    Value
  • Conversion factor
    0,0035 pC/m/s²
  • Relative coefficient of transverse conversion (less than)
    0,05
  • Operating frequency range
    200 ... 30000 Hz
  • Maximum amplitude value of the measured parameter
    900000 m·s²
  • Max. shock limit (peak value)
    150000 g
  • Strain sensitivity (less than)
    0,3 gm/µm
  • Adjustment resonance frequency in axial direction (higher than)
    145 кHz
  • Electric capacity under normal conditions
    300 ... 400 pF
  • Operating temperature range
    -60 ... 200 °C
  • Connector type
    AR05 (10-32 UNF)
  • Built-in cable
    2 m
  • Output direction
    horizontal
Electric Circuit of AP1012

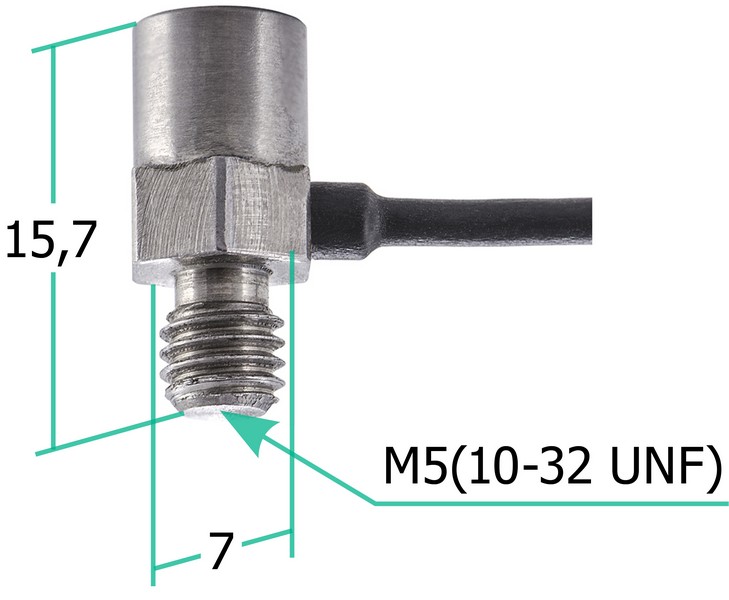

Габаритный чертеж
