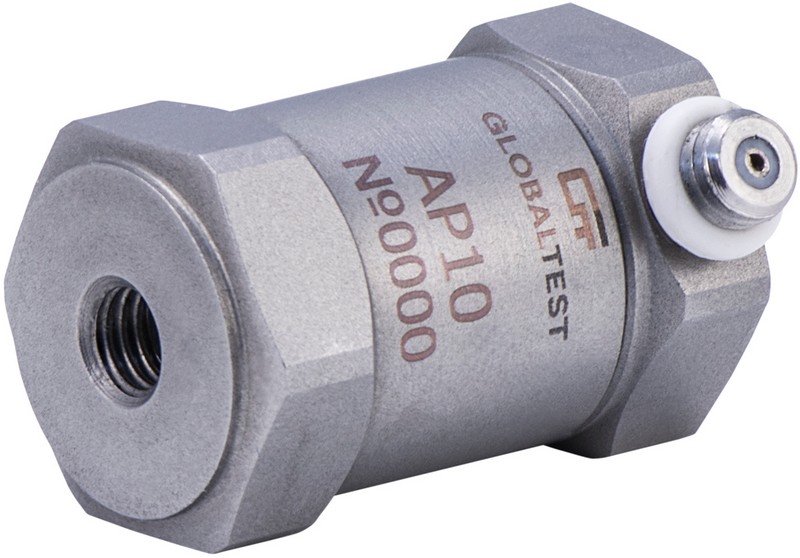

Vibration transducer AP10

Purpose:
  • Laboratory standard for verification of vibration transducers, using a comparison method.
  • Conversion of mechanical oscillations of the test object to an electrical signal proportional to the vibration and shock acceleration of the mechanical system.
  • Use as primary transducers in technical diagnostic and monitoring systems in a variety of industries to measure vibration and shock accelerations, as well as in laboratory and scientific research.
Features:
  • Long-term stability.
  • Wide temperature range.
Check price with the manufacturer
Description
Documents
  • Parameter
    Value
  • Conversion factor
    0,102 pC/m/s²
  • Relative coefficient of transverse conversion (less than)
    0,05
  • Maximum amplitude value of the measured parameter
    10000 m·s²
  • Adjustment resonance frequency in axial direction (higher than)
    30 кHz
  • Adjustment resonance frequency in transverse direction (higher than)
    11 кHz
  • Electric capacity under normal conditions
    36±2 ... - pF
  • Operating temperature range
    -60 ... 200 °C
  • Connector type
    AR03 (10-32 UNF)
  • Output direction
    horizontal
Electric Circuit of AP10

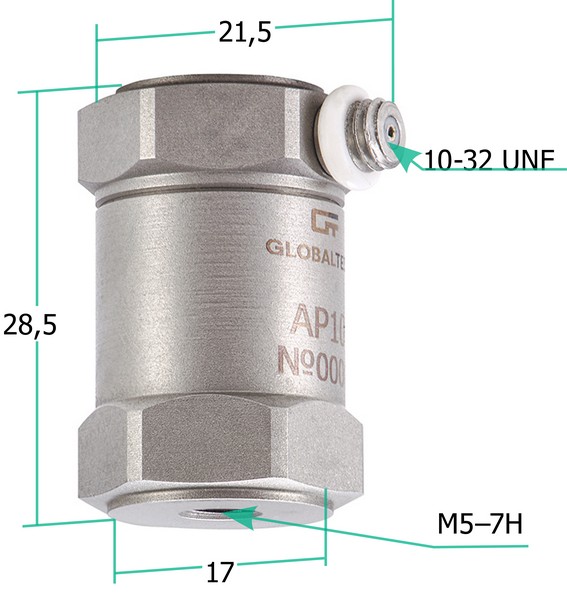

Габаритный чертеж
