The Converter of acoustic emission GT205B
Purpose:
Recording and converting the energy of vibrational displacement of elastic waves propagating from the place of origin and development of a defect in the metal structure into an electric signal.
Technical diagnostics using passive ultrasound.
Features:
Waterproof design.
GT205B has an electrically insulated sensing element and non-detachable 2-core shielded cable.
Explosion-proof version 1ExibIICT4 (option for GT205B).
Check price with the manufacturer
Количество
Add to cart
Description
Documents
Parameter
Value
Type
low frequency
Operating frequency range
40 ... 100 Hz
Max. shock limit (peak value)
-- g
Resonance frequency
55 кHz
Electric capacity under normal conditions
350 ... 500 pF
Operating temperature range
-55 ... 120 °C
Connector type
2РМ14КПN4Г1V1
Built-in cable
2 m
Output direction
horizontal
Electric Circuit of GT205B

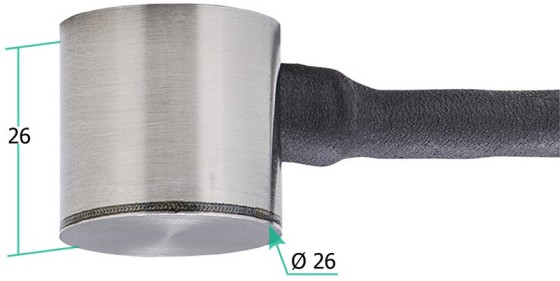

Габаритный чертеж
