Amplifier AQ08-01

Purpose:

Converting high-impedance charge signal from piezoelectric transducers to a low-impedance voltage signal.

Features:

Low intrinsic noise.
Can be used at long communication lines (up to 100 m), almost without reducing sensitivity or limiting the low frequency region.
Normalization mode.
Measurement report.
Operating mode control via USB port.

Check price with the manufacturer

Description

Parameter

Value
Conversion factor for charge

0,1; 0,2; 0,5; 1; 2; 5; 10; 20; 50;100 (Параmеtры проgраmmируюtsя через инtерфейs RS485 or USB [sоединиtель USB разmещаеtsя под крышкой уsortеля] )
Normalization factor

1 ... 9.99 in increments of 0,01 pC/Unit (Parameters are programmed via the interface S485 or USB)
Maximum input charge (peak value)

100000 pC
Limits of acceptable basic relative error of conversion factor for charge at 1 kHz

± 2 %
Operating frequency range at the level of -3 dB

1 … 30000 Hz (To be determined by customer)
RMS value of intrinsic noise reduced to the input, for sensor capacity (not higher than)

6 µV
Input resistance (higher than)

1000000000 Оm
Output resistance (not higher than)

1000 Оm
Maximum amplitude of output voltage at load resistance 10 kOhm and nonlinear distortion factor not greater than 5 %

± 4,8 V
Bias voltage at the output

± 5 V
Acceptable additional relative error limits of conversion factor for charge in the operating temperature range - 40 ... + 85 °C

0,025 %/°s
Built-in filters with decline in frequency response not less than 40 dB/decade at the level of -1 dB

0,3; 1; 3; 10 Hz (Parameters are programmed via the interface S485 or USB)
0,3; 1; 10; 30 Hz (Параmеtры проgраmmируюtsя через инtерфейs S485 or USB)
Powering mode

+ (12 ± 2) V
100 mA
Connector type

input / output
Weight

300 g
Optional accessories

matching device AG15(RS485-USB ), power unit AS05-02, cable adapters AR07

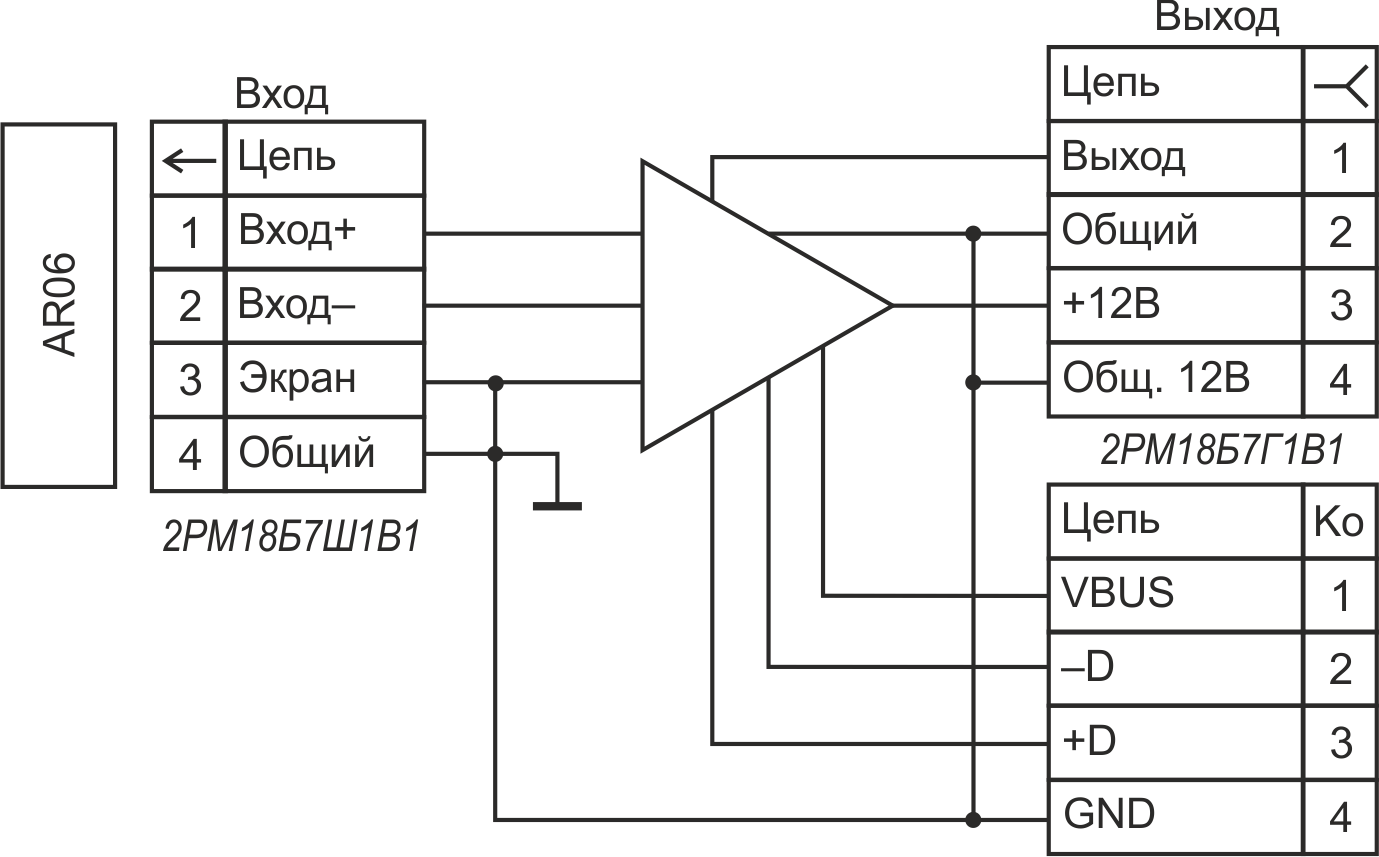

Electric Circuit of AQ08-01
