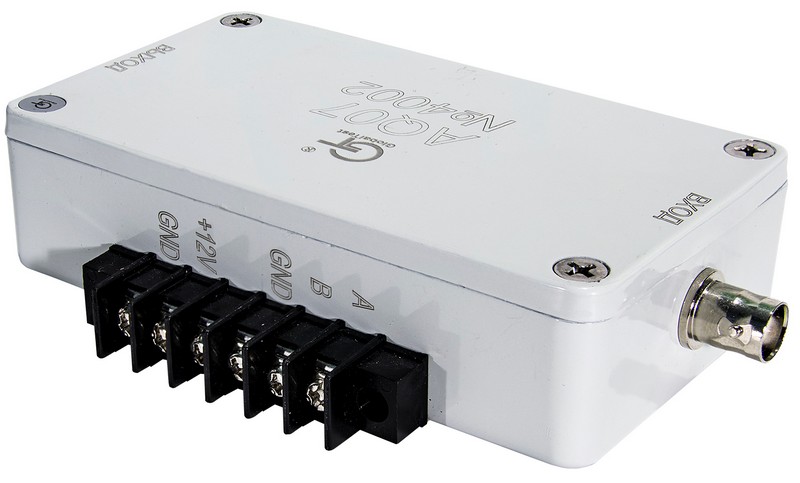

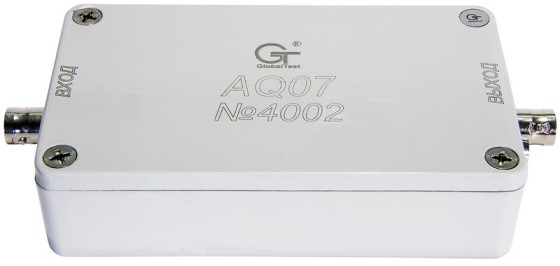

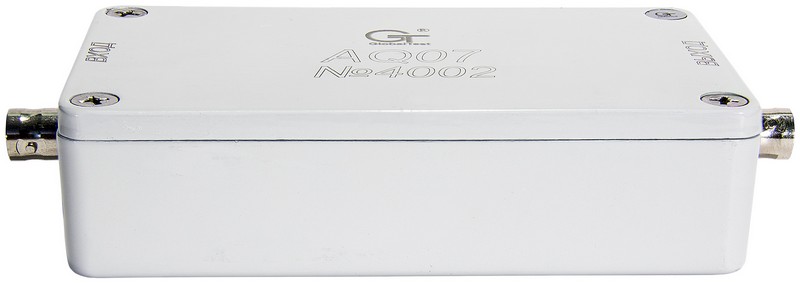

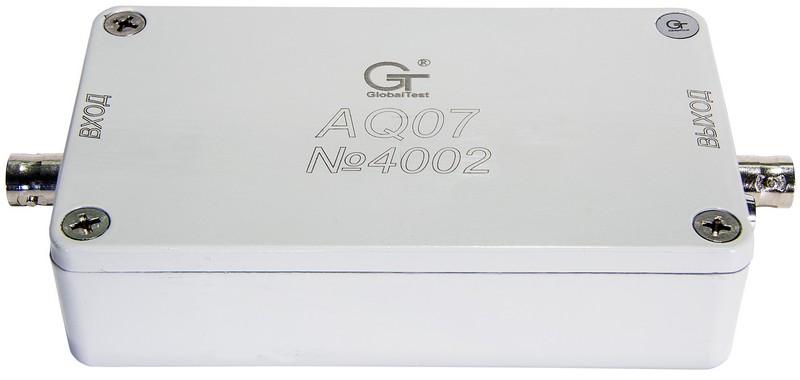

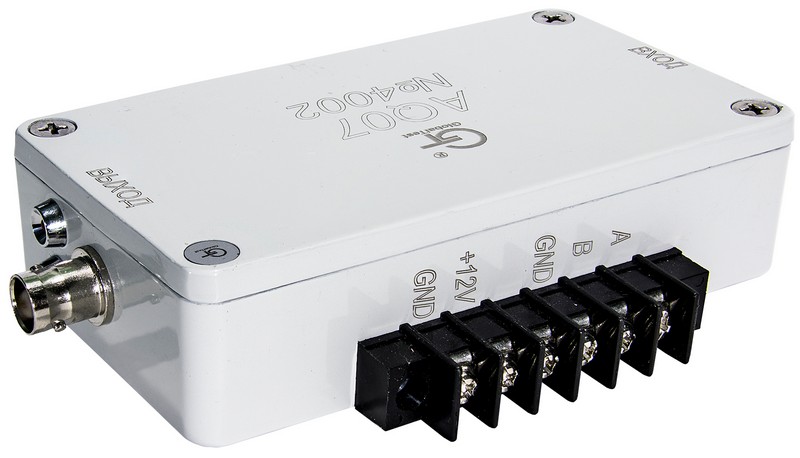

Amplifier AQ07

Purpose:

Converting high-impedance charge signal from a piezoelectric transducer (vibration transducer, force sensor, dynamic pressure sensor, etc.) to a low-impedance voltage signal.

Features:

Low intrinsic noise.
Can be used at long communication lines (up to 100 m), almost without reducing sensitivity or limiting the low frequency region.
Normalization mode.
Measurement report.
Overload indication.
Operating mode control via RS-485 port with an option of connecting up to 128 amplifiers.

Check price with the manufacturer

Description

Documents

Parameter

Value
Conversion factor for charge

0,1; 0,2; 0,5; 1;2; 5; 10; 20; 50; 100 mV/pC (Параmеtры проgраmmируюtsя через инtерфейs S485 or USB)
Normalization factor

1 ... 9.99 in increments of 0,01 pC/Unit (Parameters are programmed via the interface S485 or USB)
Maximum input charge (peak value)

106 pC
Operating frequency range at the level of -3 dB

0,3 … 10 5 Hz
RMS value of noise (maximum)

5 µV
Input resistance (higher than)

1000000000 Оm
Output resistance (not higher than)

100 Оm
Maximum amplitude of output voltage at load resistance 10 kOhm and nonlinear distortion factor not greater than 5 %

± 10 V
Acceptable additional relative error limits of conversion factor for charge in the operating temperature range - 40 ... + 85 °C

± 0,5 %
Built-in filters with decline in frequency response not less than 40 dB/decade at the level of -1 dB

0,3; 1; 3; 10 Hz (Parameters are programmed via the interface S485 or USB)
1, 10, 30, 100 kHz (Parameters are programmed via the interface S485 or USB)
+ (12 ± 2) V
< 100 mA
Connector type

input / output
Type of power supply connector

клеmmная колодка
Overall dimensions

136,5 x 80 x 30 mm
Weight

500 g
Delivery set

installation disc
Optional accessories

AG15 (RS485-USB), power unit AS05

Electric Circuit of AQ07
